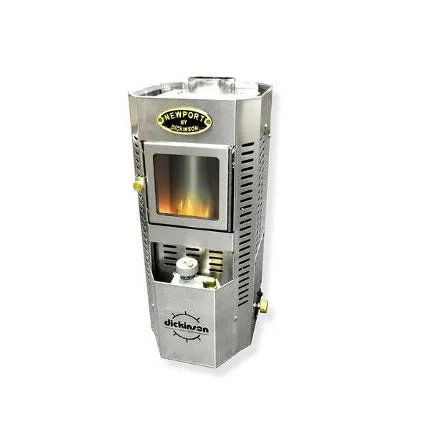

Newport Bulkhead Mount Diesel Heater
The Newport Bulkhead Mounted Heater is ideal for boats 30-35ft. Small, compact, and bulkhead mounted. An attractive, economical diesel burning heater, providing comfortable, dry heat.
Requires 3” diameter chimney parts.
- Minimum 4ft or maximum 8ft of chimney is required, a 6ft straight run with no elbows work best.
- Chimneys 6ft or longer we highly recommend a barometric damper.
- Permanent fresh air vent needed in area of the unit.
- Decorative laser cut valve cover.
- Creates a dry heat to dry out moisture inside the vessel.
- In sailboat installations, this unit must face fore or aft, if facing port or starboard is desired, the valve would need to be mounted to the side of the unit so the gravity fed valve won’t starve the burner on heels up to 15 degrees.
- Draft assist fan included (set up for 24V but easily converted to 12V). Used for start up and draft assistance on high fire.
Valve is calibrated for diesel but can be re-calibrated for kerosene or stove oil.
Measurements:
- Width: 215mm
- Height: 501mm
- Depth: 266mm
- Weight: 10kg
Fuel Consumption / 24hr:
- 4.9L LOW
- 12.1L HIGH
Heat Output:
- Low: 6500 BTU
- High: 16250 BTU
Features:
- Bulkhead mounted heater
- Non-rust stainless steel construction
- Heater output 6,500 BTU low setting and 16,250 BTU on high setting
- Overflow safety feature on oil metering valve
- Limited one year manufacturer's warranty on workmanship and materials
Chimney flue can be supplied by another great Wellington shop - The Flue Shop. Give them a call or drop them an email with your specs and they will be able to supply your needs.
